In stockConnector housings

TE Connectivity Deutsch

HD10-9-16P

HD10 9-Position Panel-Mount Receptacle Housing, Gray

TE Connectivity Deutsch HD10-9-16P 9-position circular receptacle housing for size 16 male pins, flange panel mount, gray. New old stock.

Request quantity pricing Manufacturer data

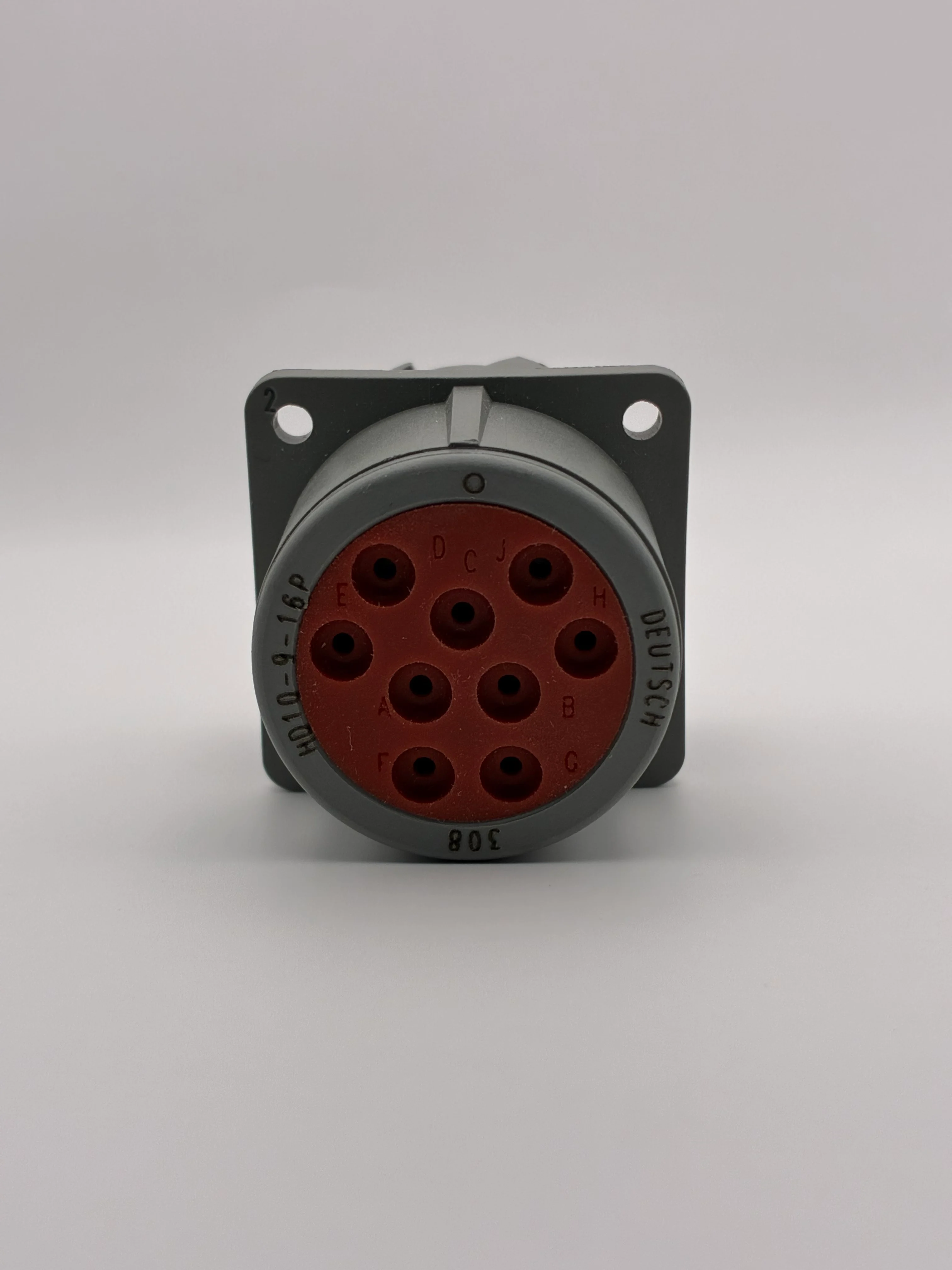

Front face of a gray Deutsch HD10-9-16P receptacle showing the 9-cavity insert and part marking

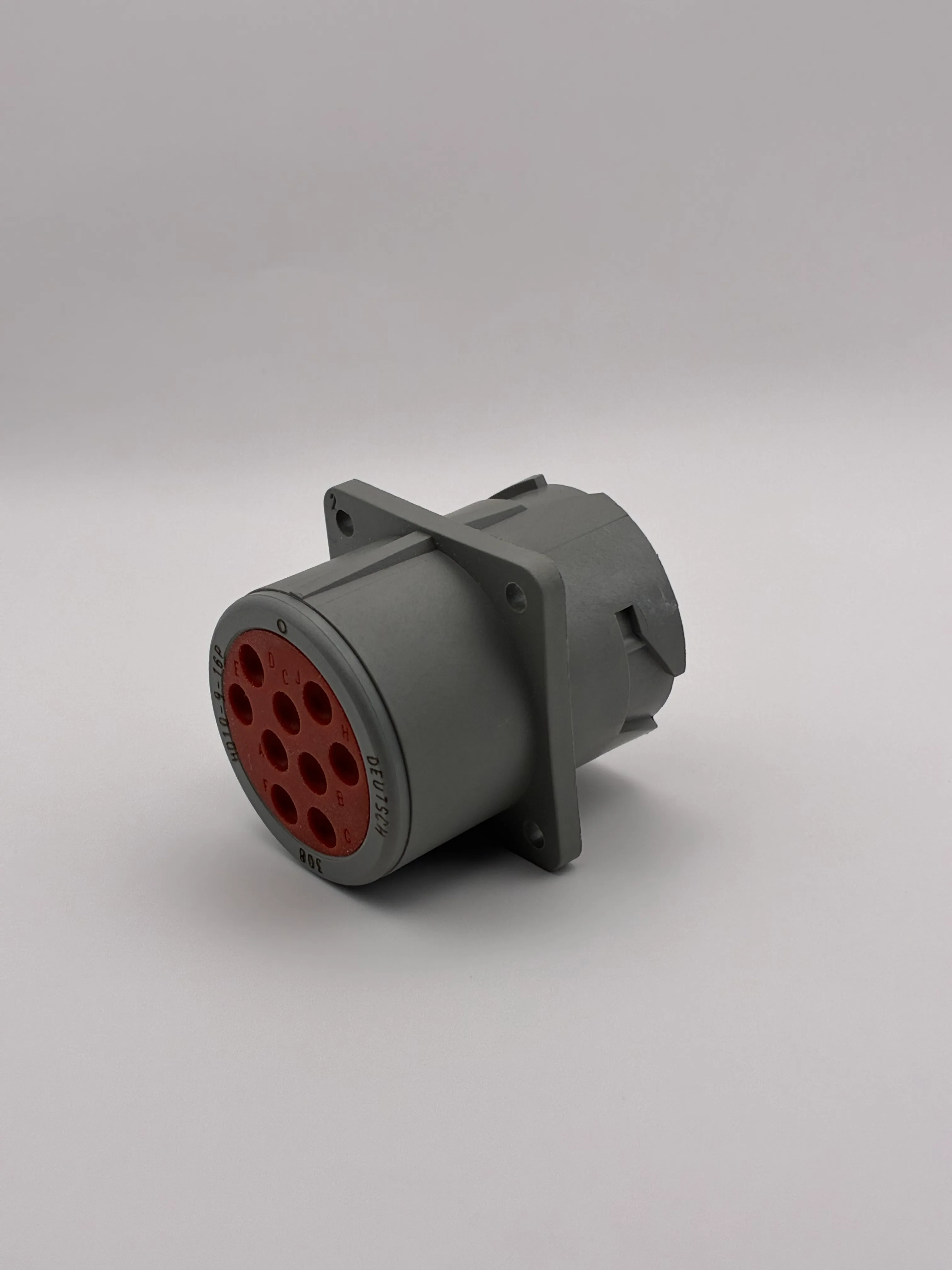

Angled view of the Deutsch HD10-9-16P flange-mount receptacle housing

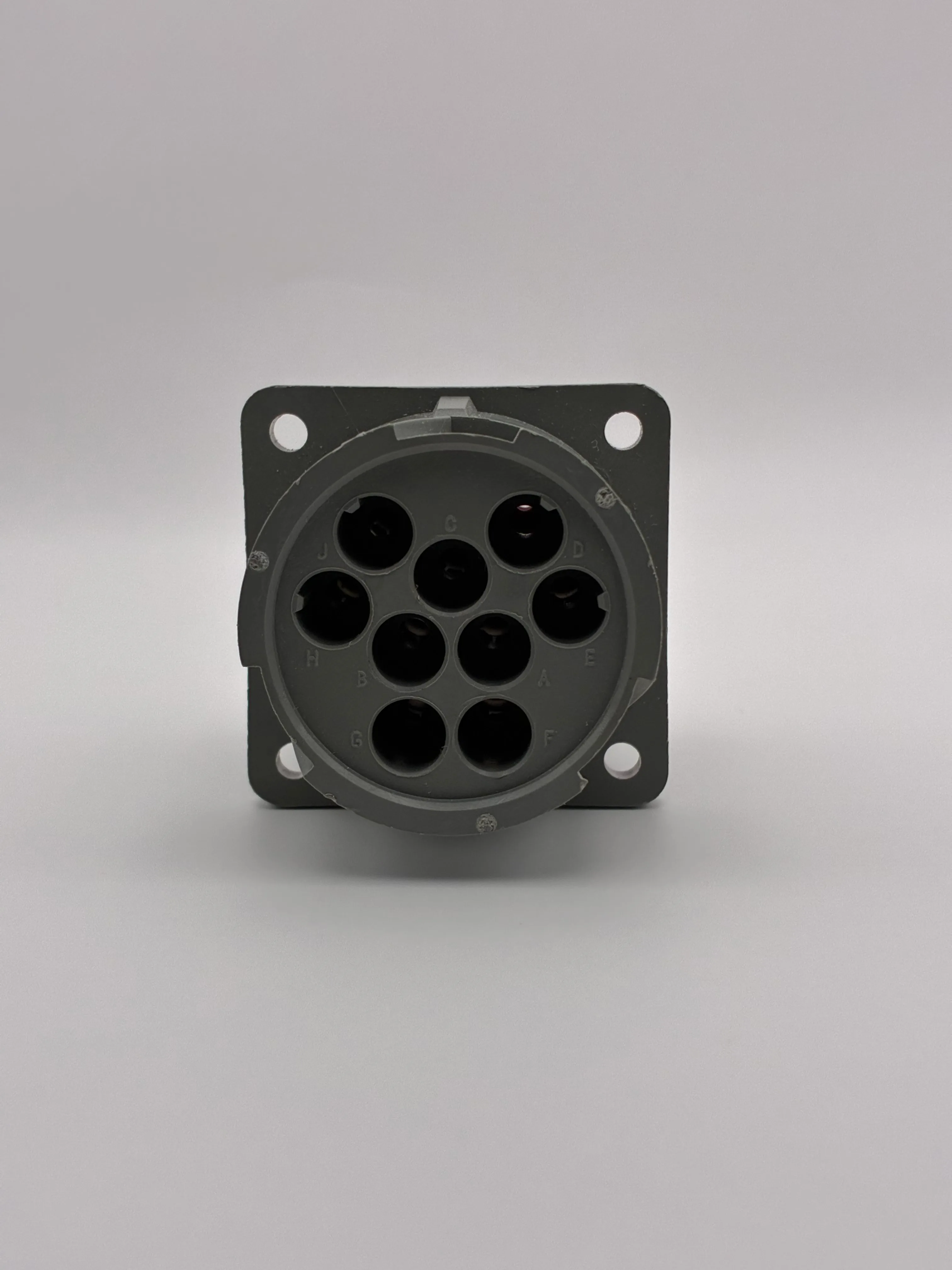

Rear wire-entry side of the Deutsch HD10-9-16P receptacle

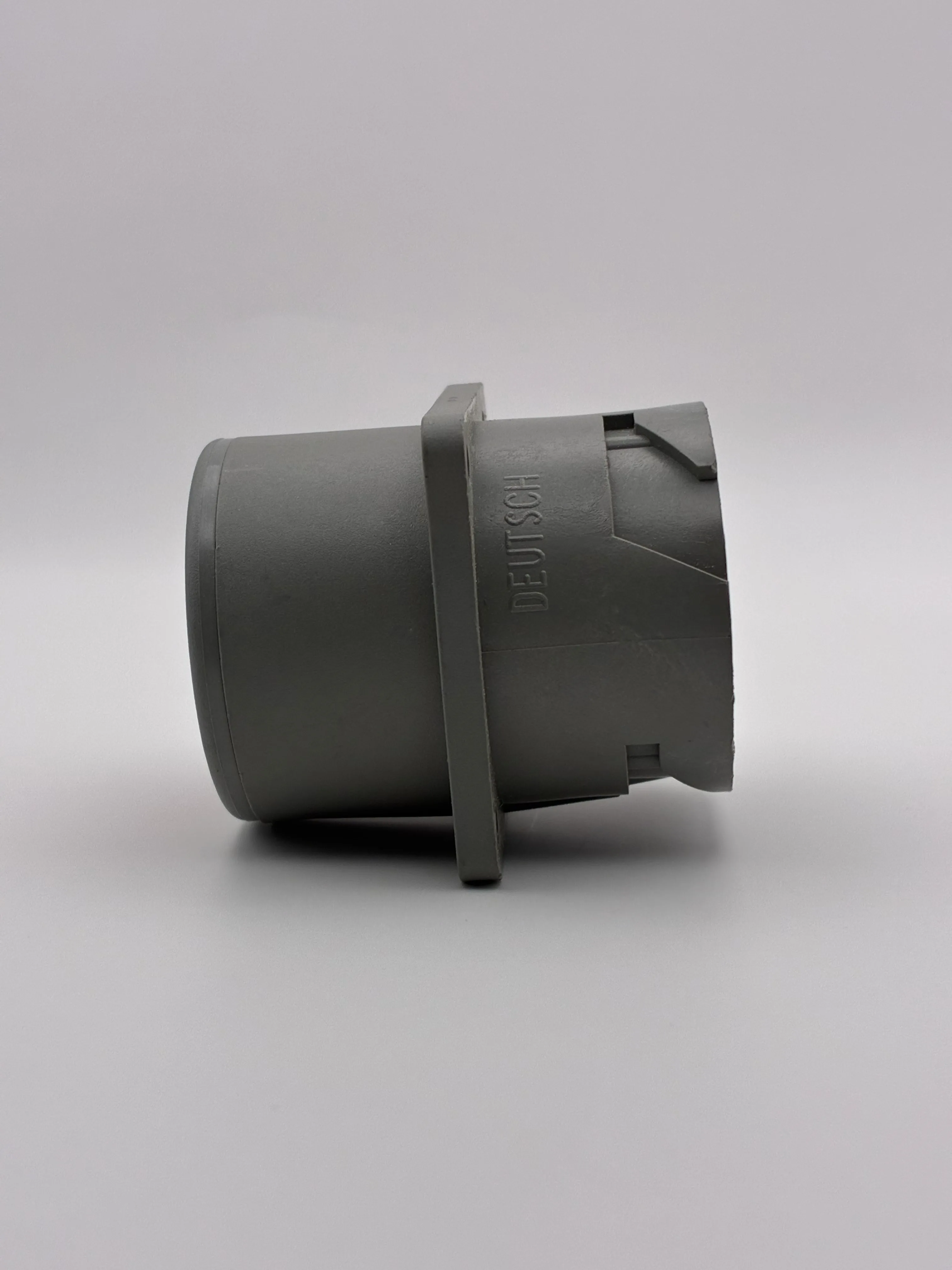

Side view of the Deutsch HD10-9-16P showing the mounting flange

Electrical and mechanical

Specifications

Positions
9
Connector type
Receptacle housing for male pins
Shell size – insert
9-16
Contact size
16, crimp (contacts sold separately)
Mounting
Panel mount, flange
Fastening
Bayonet lock, keyed
Material
Glass-filled polyamide (nylon)
Color
Gray
Ingress protection
IP68
Flammability
UL94 V-1
Operating temperature
−40°C to +125°C

Specifications from the Digi-Key product page for TE Connectivity Deutsch HD10-9-16P (https://www.digikey.com/en/products/detail/te-connectivity-deutsch-ict-connectors/HD10-9-16P/6566669). Full data: TE Connectivity data sheet (linked above).

Lot documentation

Condition and packaging

Stored in a bulk bag.

Contacts are not included. Sold as found; not tested.

  • New old stock, unused
  • Contacts sold separately
  • Actual photographs of the stock on hand
  • Availability and quantity confirmed before sale
