In stockBoard-to-board connectors

Molex

0459712311

SEARAY 200-Position 1.27 mm Mezzanine Receptacle, SMT

Molex SEARAY 0459712311 (45971-2311) 200-position, 1.27 mm pitch high-density array female receptacle, surface mount, gold contacts. New old stock in original trays.

Request quantity pricing Manufacturer data

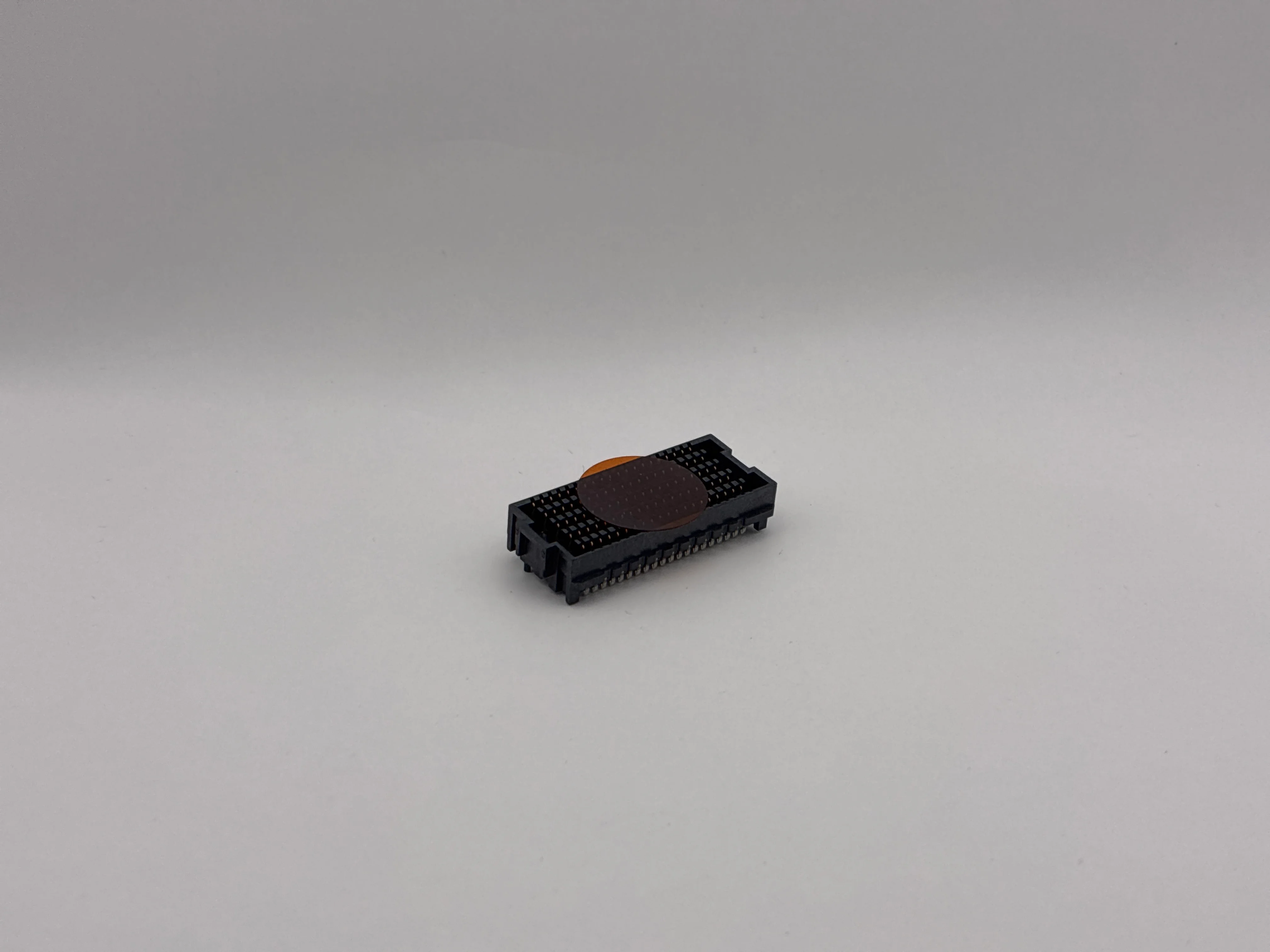

Molex 0459712311 SEARAY receptacle, three-quarter view

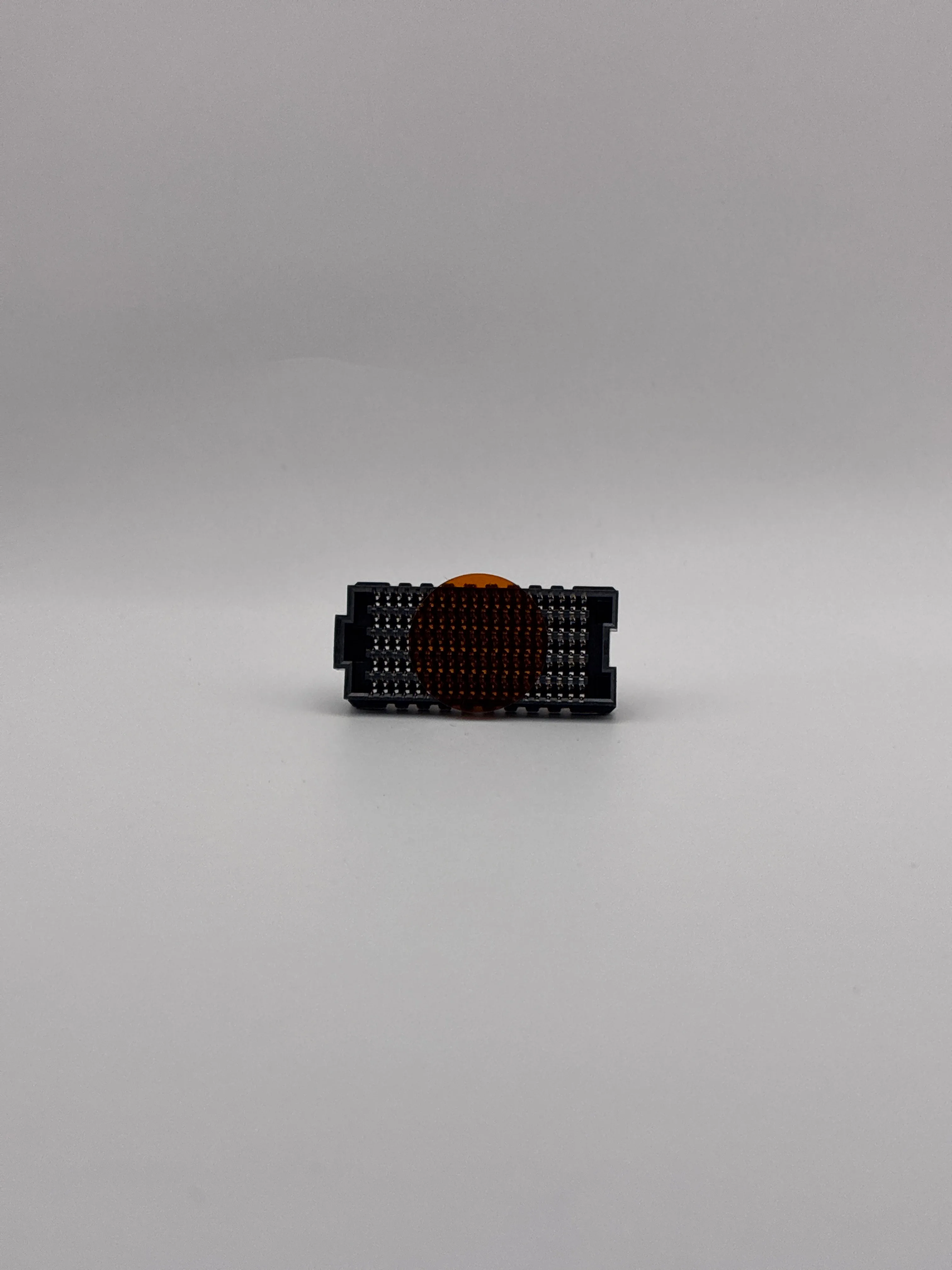

Molex 0459712311, top view of the contact array

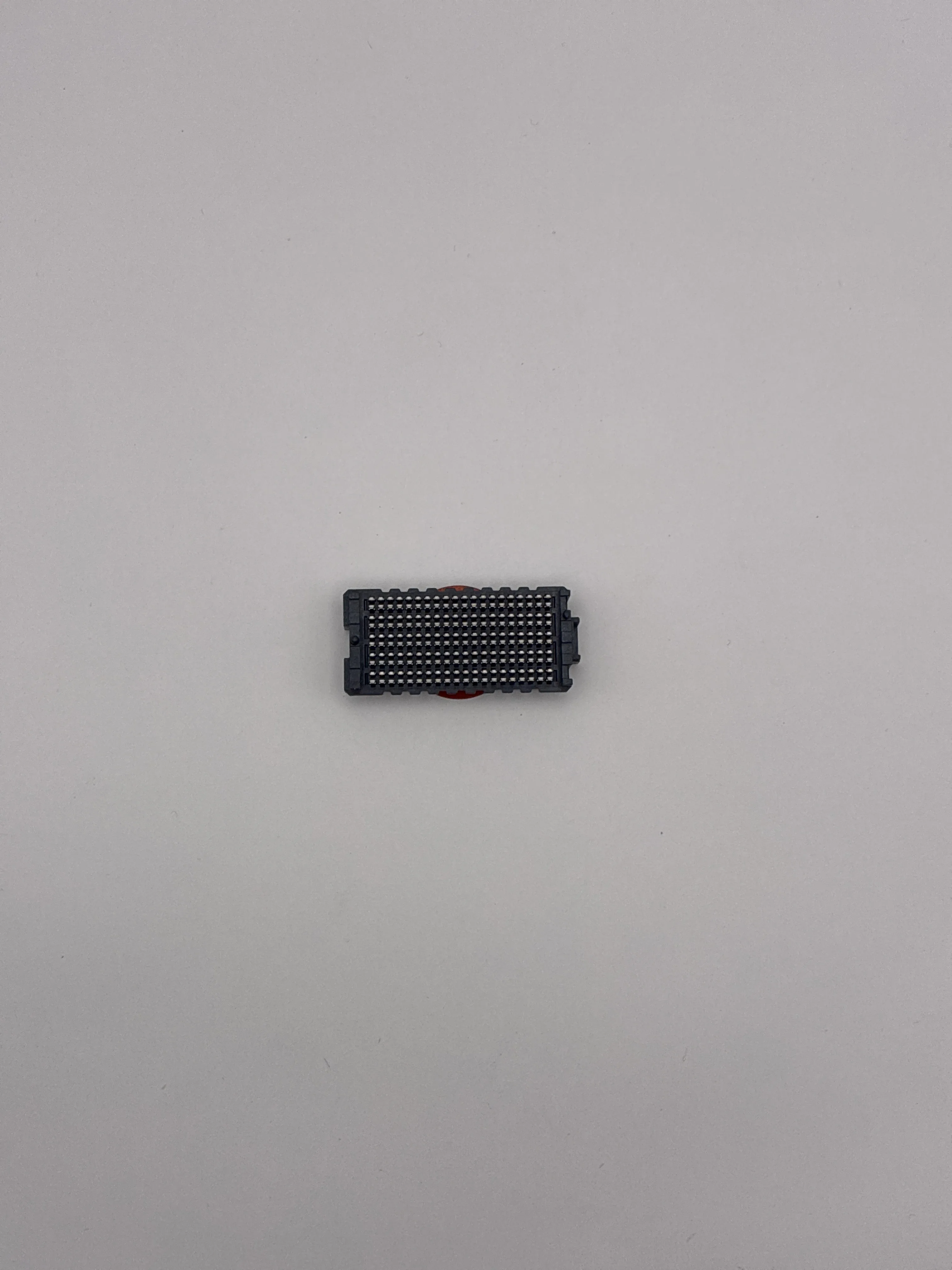

Molex 0459712311, top view of the contact field
Molex 0459712311, closer top view of the contact array
Molex 0459712311, side view showing a contact row
Molex 0459712311 tray label showing the part number

Electrical and mechanical

Specifications

Positions
200 (10 rows)
Pitch
1.27 mm (0.050 in)
Connector type
High-density array, female
Mounting
Surface mount
Contact finish
Gold, 0.76 µm (30 µin)
Features
Board guide
Height above board
6.55 mm (0.258 in)
Mated stacking heights
8.5, 9, 9.5, 10, 11, 11.5, 13.5 mm (with matching plugs)

Specifications from the Digi-Key product page for Molex 0459712311 (https://www.digikey.com/en/products/detail/molex/0459712311/3467712). Full data: Molex data sheet (linked above).

Lot documentation

Condition and packaging

Original Molex trays, date code 1223.

Sold as found; not tested.

  • New old stock, unused
  • Original tray packaging
  • Date code 1223
  • Availability and quantity confirmed before sale
