Power-One (Bel Power Solutions)
DGP20E24T5/15
20 W Triple-Output Isolated DC-DC Converter, 24 V Input
Power-One (now Bel Power Solutions) DGP20E24T5/15 isolated DC-DC converter module: 18–36 VDC input, +5 V and ±15 V outputs, 20 W total. Obsolete part, new old stock.
Electrical and mechanical
Specifications
- Input voltage
- 18–36 VDC
- Outputs
- +5 V at 2.5 A; +15 V at 250 mA; −15 V at 250 mA
- Output power
- 20 W
- Isolation
- 700 VDC minimum, input to output
- Efficiency
- Up to 84%
- Features
- Remote on/off, overvoltage protection, short-circuit protection
- Operating temperature
- −40°C to +85°C
- Case
- Five-sided shielded, 2.02 × 2.02 × 0.45 in (51.3 × 51.3 × 11.4 mm)
- Mounting
- Through hole, 7-pin
- Lifecycle
- Obsolete (per Digi-Key)
Specifications from the Power-One DGP20 Series datasheet, whose selection chart lists the DGP20E24T5/15 at 18–36 VDC input, +5 V at 2500 mA and ±15 V at 250 mA (hosted by Digi-Key: https://media.digikey.com/pdf/Data%20Sheets/Power%20One%20PDFs/DGP20E24T5-15.pdf), and the Digi-Key product page for Bel Power Solutions DGP20E24T5/15 (https://www.digikey.com/en/products/detail/bel-power-solutions/DGP20E24T5-15/251296). Confirm application-critical details against manufacturer documentation.
Lot documentation
Condition and packaging

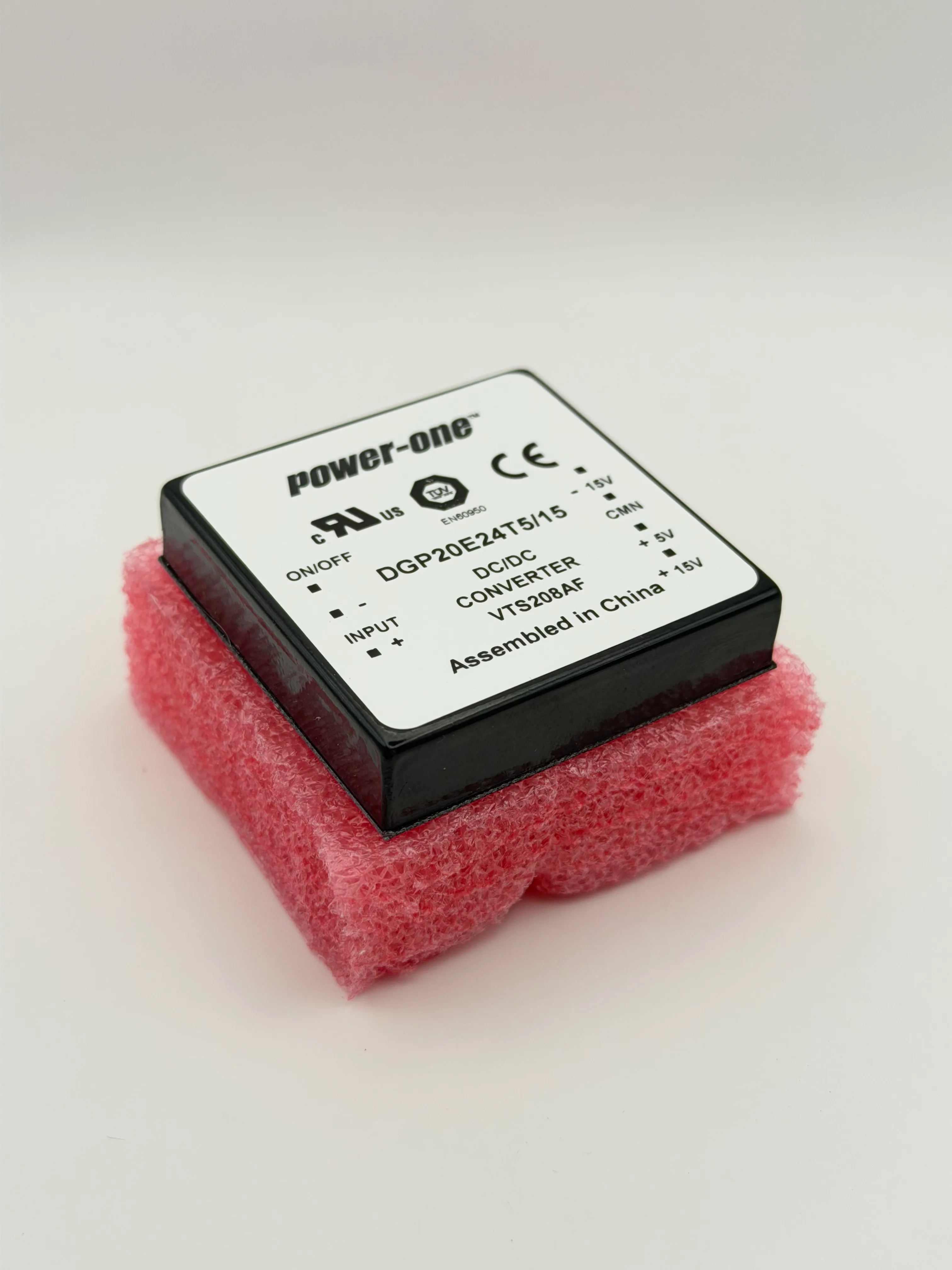

Each module is stored on protective foam.
Units are sold as found and have not been tested.
- New old stock, unused

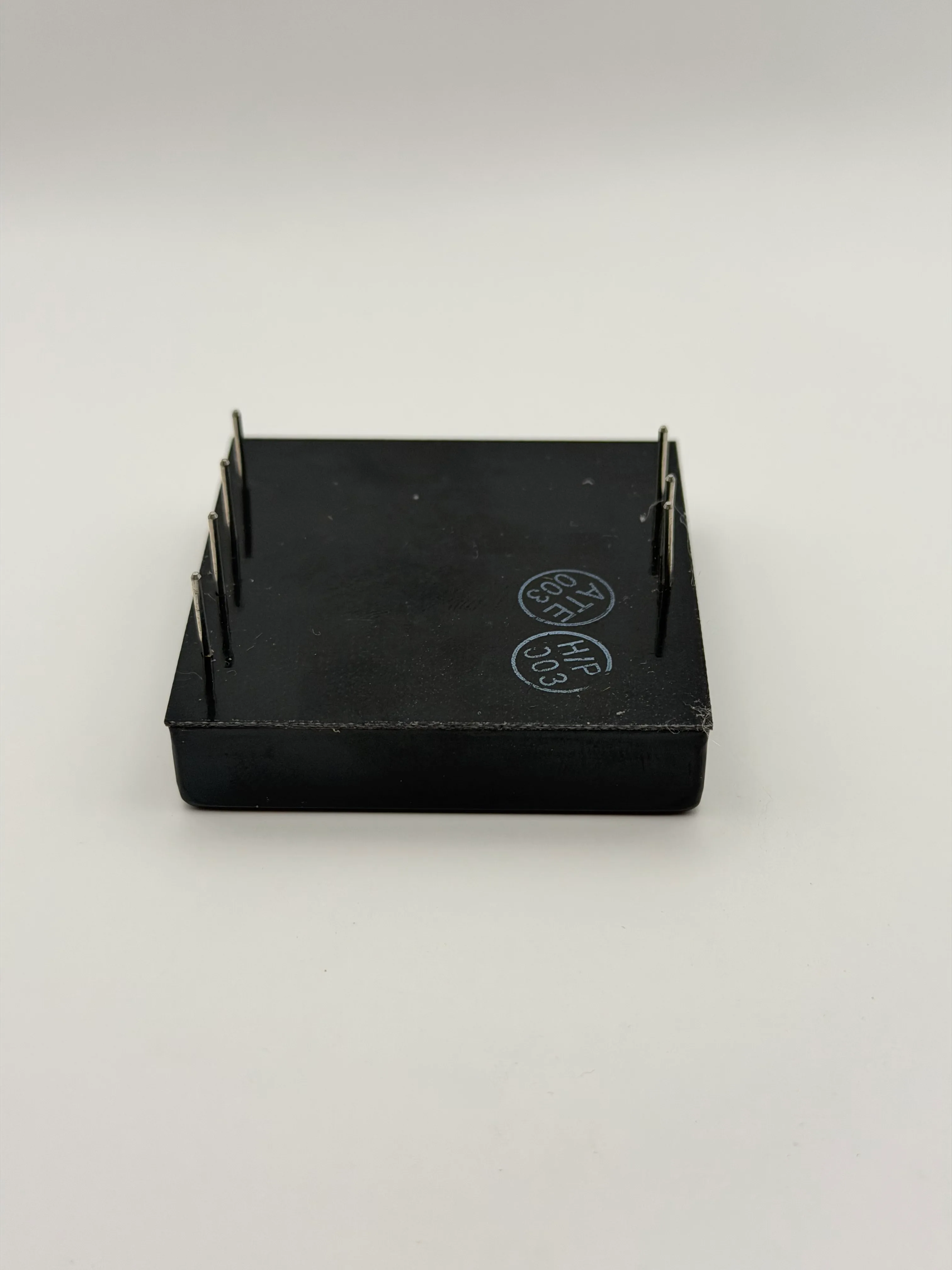

- Clean, unsoldered pins

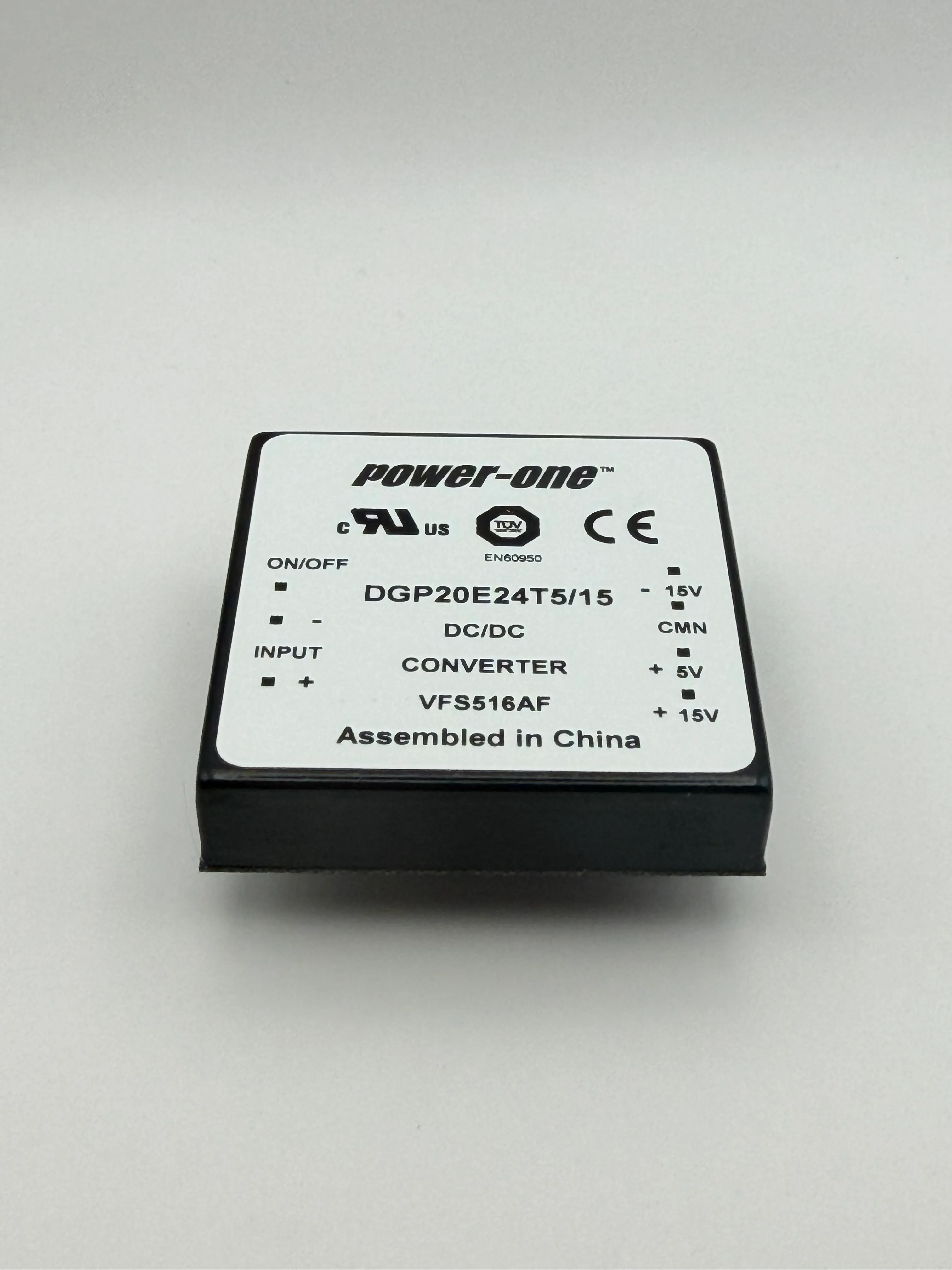

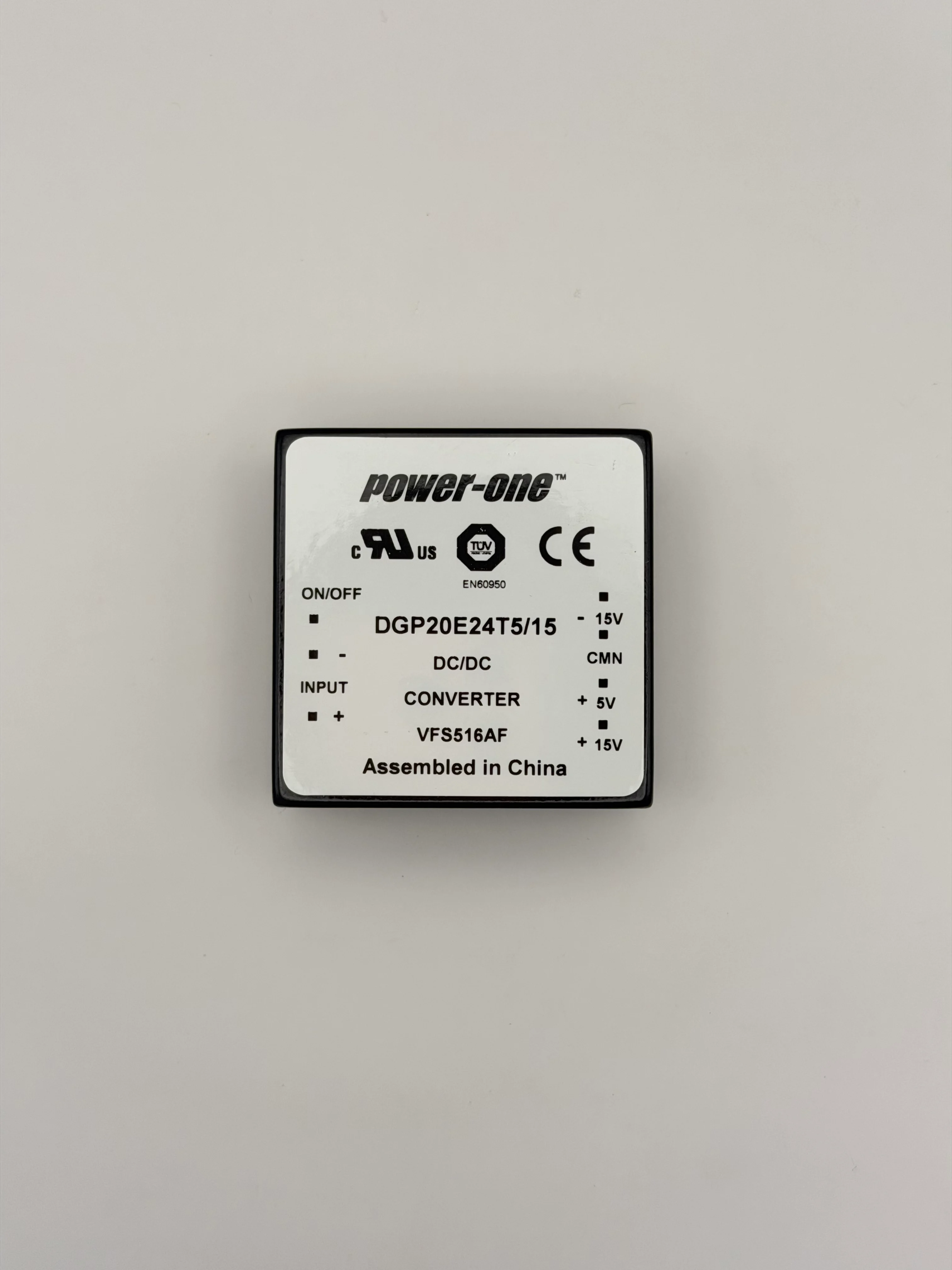

- Actual photographs of the stock on hand
- Availability and quantity confirmed before sale
