In stockBoard-to-board headers

Samtec

FTSH-110-01-L-DH-A

20-Pin Horizontal SMT Micro Header

Samtec FTSH-110-01-L-DH-A 1.27 mm pitch micro header: 20 pins in two rows of 10, horizontal surface-mount (not right-angle). New old stock, packed in tubes of 46.

Request quantity pricing

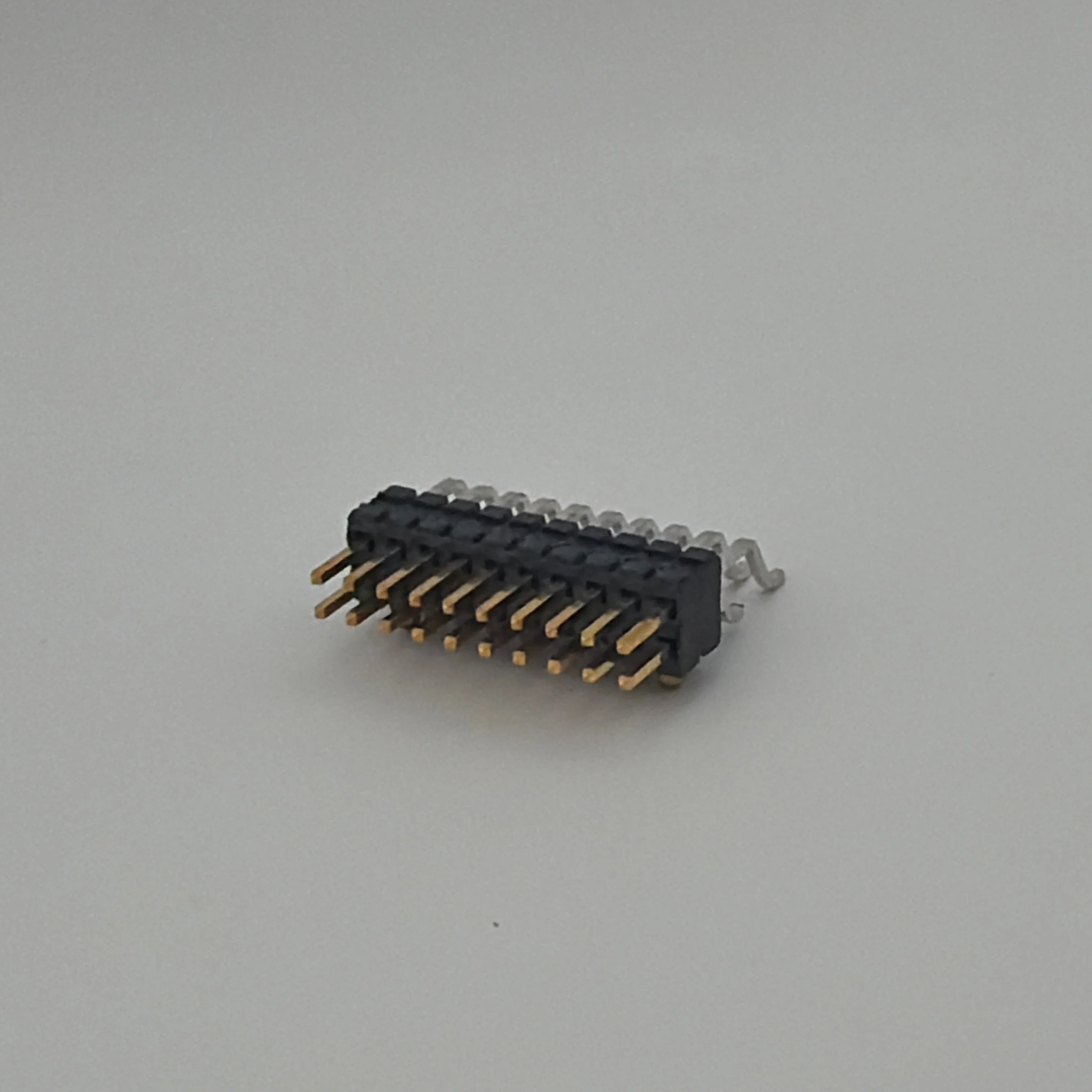

Samtec FTSH-110-01-L-DH-A, pin side

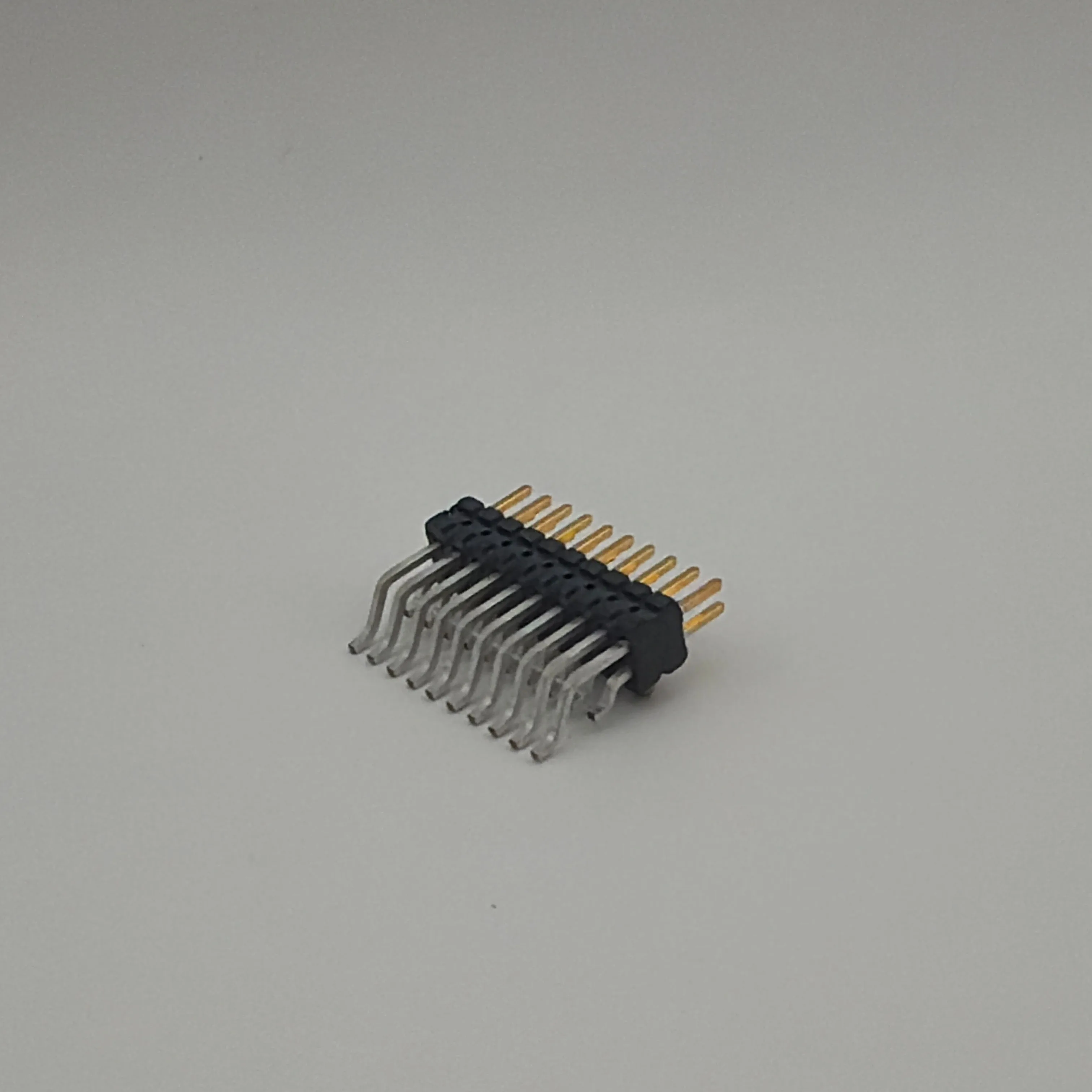

Samtec FTSH-110-01-L-DH-A, tail side

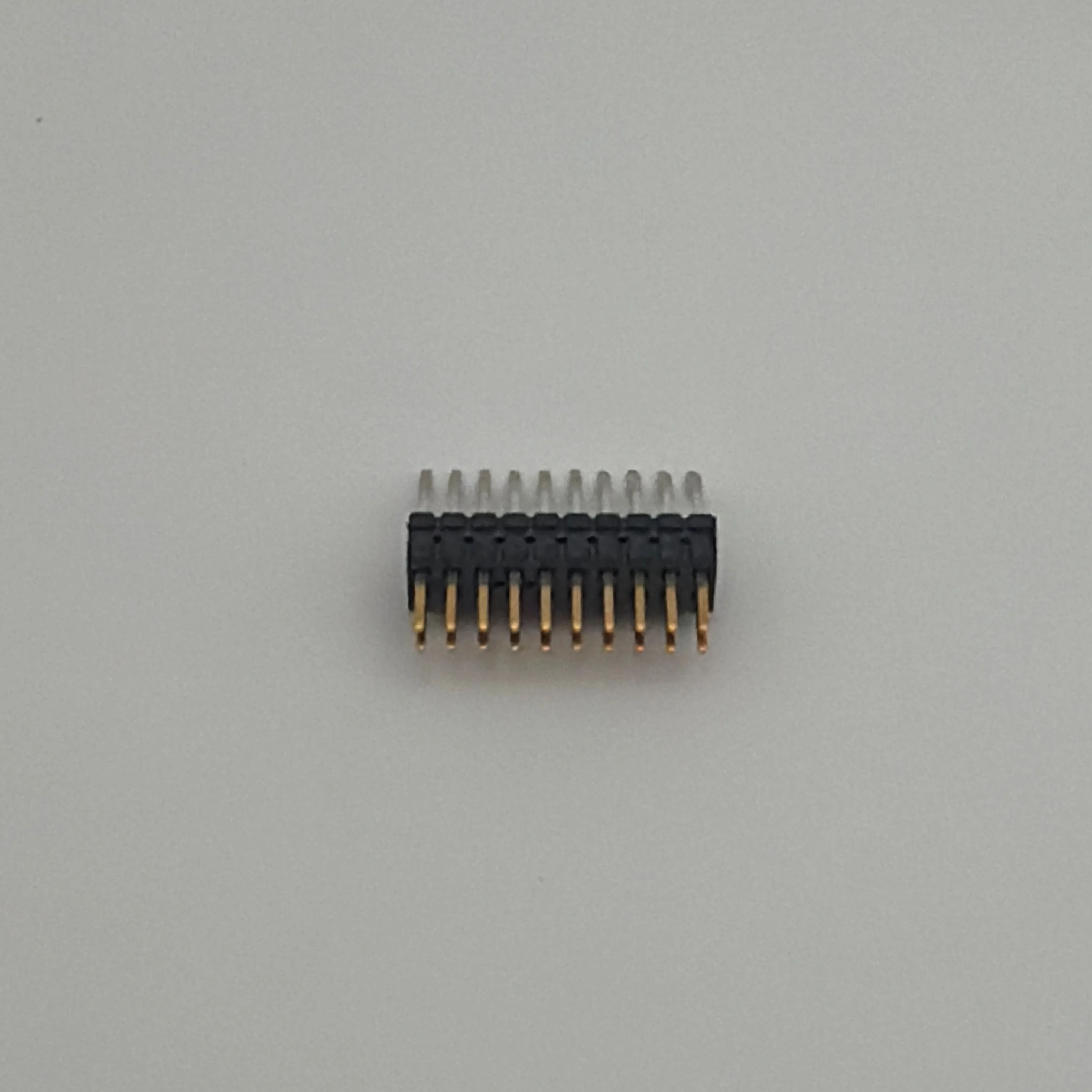

Samtec FTSH-110-01-L-DH-A, mating face

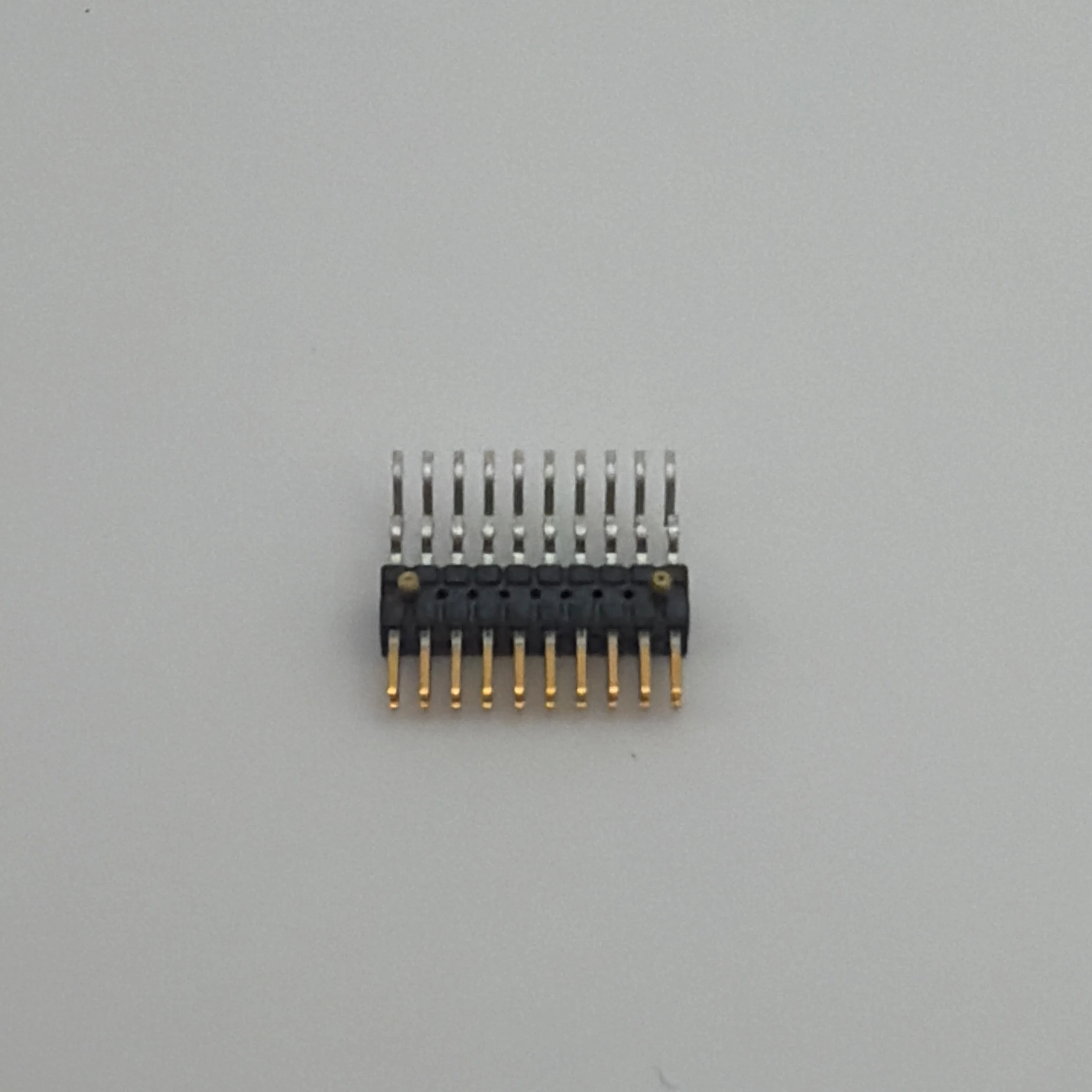

Samtec FTSH-110-01-L-DH-A, alignment pins

Electrical and mechanical

Specifications

Pitch
1.27 mm (0.050 in)
Positions
20 (2 rows × 10)
Orientation
Horizontal surface mount
Post height
0.120 in
Plating
10 µin gold / tin
Option
A pin

Pitch, pin count, horizontal surface-mount orientation, 0.120 in post, 10 µin gold/tin plating, and A-pin option are from the Samtec product page for this exact MPN (https://www.samtec.com/products/ftsh-110-01-l-dh-a). A manufacturer PDF was not attached.

Lot documentation

Condition and packaging

27 tubes of 46 pieces.

  • Availability and quantity confirmed before sale
